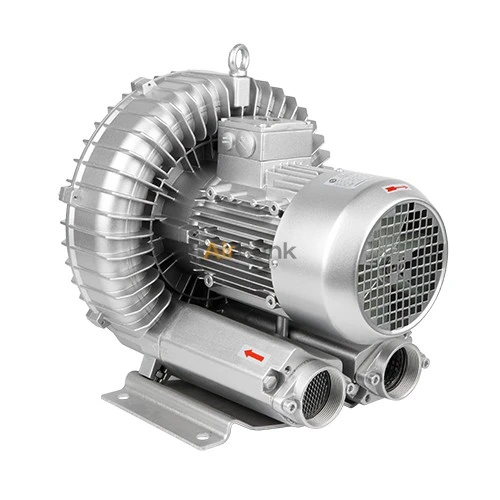

1.5HP Nqus Pump Cua Blower

Ib theem / peb theem NEMA lub cev muaj zog
Ib theem / ob theem / ntau theem sab channel blower
CE / RoHs ntawv pov thawj
7/24 tsis nres ua haujlwm txog 22000hours

Xa kev nug

Muaj nuj nqi

Hank regenerative blowers ua haujlwm li cas?

Cov impellers hauv RBG-Series cov cav tov yog mounted ncaj qha rau ntawm lub cev muaj zog rau kev tiv tauj dawb compression, Kev ntseeg siab tshaj plaws. Txawm tias nyob rau ntawm qhov sib txawv siab thiab cov huab cua loj, yog ua kom ntseeg tau los ntawm kev npaj ntawm cov bearings sab nraum lub compression chamber.

HANK blowers txheej txheem cej luam

RBG series -- ib theem

RBG series -- ob theem

RBT series --ib theem

RBT series -- ob theem

RBT series -- ntau theem

RBD series

Series	zog	cua ntws	Siab
RBG ib theem	0 4-18.5kw	80-1370m³/h	80-500mbar
RBG ob theem	0 7-25kw	88-2330m³/h	80-600mbar
RBT ib theem	0 55-3.3kw	47-196m³/h	29-48kpa ua
RBT ob theem	0 81-5.7kw	47-165m³/h	48-82kpa ua
RBT ntau theem	7.5 kwm	170m³/h	104kpa ua

Hank regenerative blowers, kuj paub tias yog sab channel blowers, kev ntseeg siab hauv kev pabcuam rau ntau xyoo lawm, 24/7 ua haujlwm, Peb lub tshuab tuaj yeem tsim suab nrov qis dua li ntawm lwm cov twj tso kua mis thiab compressors.

RBG series cua blower feature NEMA hwm motors, voltage ranges rau 50 / 60Hz nyob rau hauv kev tiv thaiv chav kawm ntawv IP55 (cov ntaub ntawv rwb thaiv tsev chav F) thiab yog CE, RoHs pom zoo, Qhov no ua rau lawv zoo tagnrho tov rau kev siv thoob ntiaj teb.

Nta

* Siab CFM muaj peev xwm nruab nrab siab / nqus

* Ib qho yooj yim installation

* Kev sib cuag-tsawg ua haujlwm

* VFD tau tshaj

* Txog li 22, 000 teev ua haujlwm yam tsis muaj kev saib xyuas

* 100% tsis muaj roj

Daim ntawv thov

Hank muaj kev paub ntau dua nrog ntau dua 500 cov khoom siv thiab cov tshuab, xws li ntim khoom, lub tshuab nqus tsev ntim khoom siv rau cov dej haus, tshuaj pleev ib ce, tshuaj, ntawv cim npe, cov tshuab tsis siv neeg nplaum lebels rau cov khoom ntim, lub tshuab nqus tsev yog siv ua ke nrog suction khob.
