Cua Compressor Pneumatic Cua Riam

Thaum cov cua compressed rau hauv HANK Super pneumatic cua Riam, los ntawm lub hauv paus ntsiab lus ntawm cov nyhuv Coanda thiab cov cua riam tshwj xeeb, mus rau ib sab ntawm daim ntawv airflow high-speed tshuab tawm, thawj cov ntaub thaiv huab cua deflection 90 degree yuav hloov mus rau 25. lub sij hawm mus rau 40 lub sij hawm, tsim ib tug nyias sab ntawm lub siab-siv, loj airflow cuam tshuam, thov rau tu, ziab, txias, steel, aluminium alloys, haus fwj, ntim irrigation thiab lwm yam fwj, xws li lub raj mis nto ntawm lub de-watering, tshuab tawm ntawm qhov chaw ntawm cov khoom ntawm cov hmoov av. residual kua.

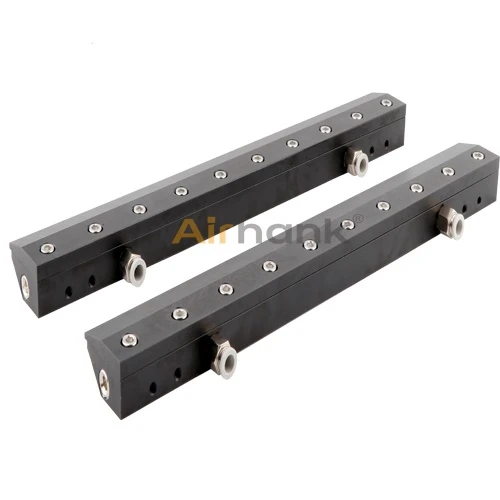

TA-600-S2/T2
Qauv	Ntev (mm)	Cua inlet txoj hauj lwm	Cua inlet tooj
TA series super cua riam	600	S 2=2 sab	T2= 2pcs inlet



Lub cev tseem ceeb: 6061 T6 siab zog aluminium alloy

Qhov hluav taws xob kho tau ntau yam: 0 05-0.1mm

Gasket foob: zaub mov qib silicone

Max ntev: 1168mm

Max cua ceev: 400m / s

Kub tiv taus: 200 degree

Siab tiv taus: 10kgf / cm2

Qhov hnyav (txhua 100mm): 200G

Qhov tseeb qhov hluav taws xob: ± 2%

Kev kho deg: dub anode





TSI type	Qhov hluav taws xob ntev	Qhov hluav taws xob dav	Ua siab ntev	Kub tiv taus	Inlet kev taw qhia	Tus naj npawb ntawm inlet	Siab thiab huab cua ntws yuav tsum tau rau ntau yam mob
							Airflow magnification 20		Airflow magnification 30		Airflow magnification 40
	mm	mm	mpa ua	degree		1	kpa ua	m³/h	kpa ua	m³/h	kpa ua	m³/h
TA-100-S2/T1	100	0.05	1.0	200	sab	1	4.0	0.36	6.0	0.49	8.0	0.58
TA-200-S2/T2	200				sab	2		0.72		0.98		1.16
TA-300-S2/T2	300				sab	2		1.08		1.47		2.32
TA-400-S2/T2	400				sab	2		1.44		1.96		2.90
TA-500-S2/T2	500				sab	2		1.80		2.45		3.48
TA-600-S2/T2	600				sab	2		2.16		2.94		4.06
TA-700-S2/T2	700				sab	2		2.52		3.43		4.64
TA-800-S2/T3	800				sab	3		2.88		3.92		5.22

(*lwm tus loj pls hu rau peb rau customized*)



* Hank cov riam cua ua haujlwm ntawm cov suab nrov qis (70-80dB).

* Tsawg cua noj, txuag cua compressed zoo heev, cua riam cua noj tsuas yog 50% ntawm cov tsoos tshuab raj

* Cua riam tshuab cua tshuab rau huab cua txias, tsis kub nce

* Cov cua nkag tuaj yeem xaiv tau ntawm sab kawg lossis sab nraub qaum

* Kev nyab xeeb siv, tsis xav tau hluav taws xob, ncaj qha compressed cua tsav



Pneumatic cua riam tseem hu ua cua riam, cua curtains, super pneumatic cua riam, super cua riam, cua compressed cua riam, tam sim no yog cov feem ntau txhim khu kev qha thiab nqi-zoo tshuab ziab khaub ncaws nyob rau hauv lub ntiaj teb no. Lawv tau siv dav hauv ntau lub tebchaws.











TA Series Pneumatic Cua Riam Air Curtain Distance thiab Diffusion Range
